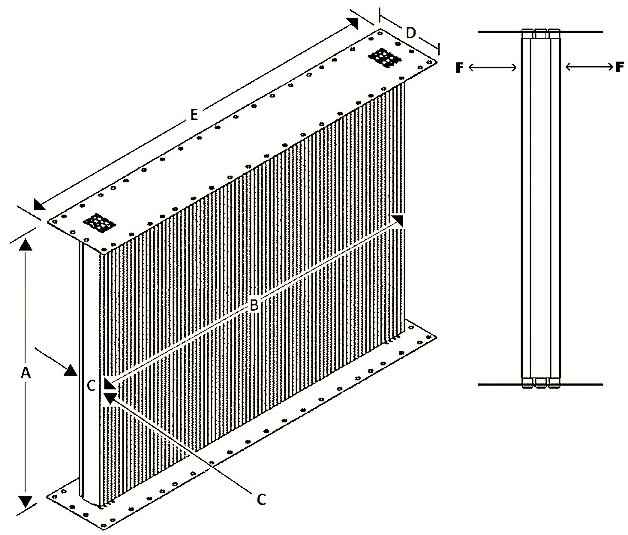

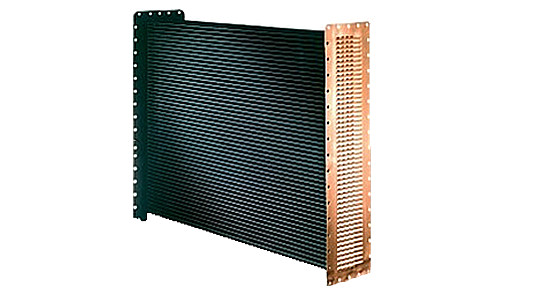

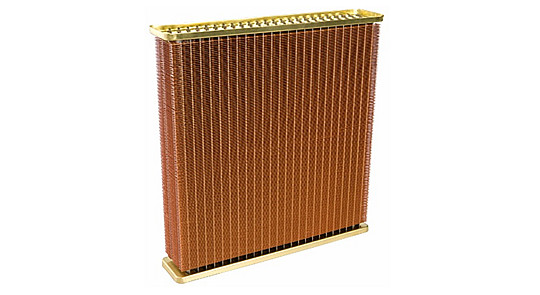

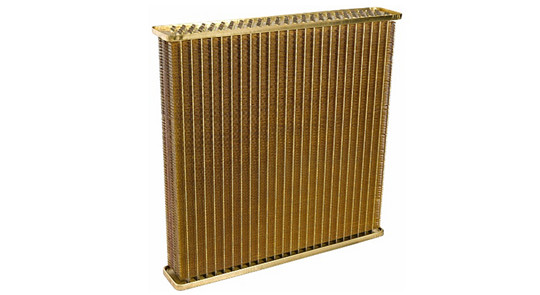

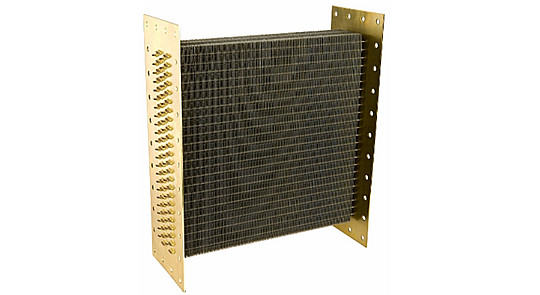

We produce and design Flat-Fin  and Zigzag radiator cores for trucks and industrial equipment. Because there are many different fin configurations and core sizes, it is necessary to speak with one of our specialists to determine the correct core for your equipment.  Below is a diagram of a radiator core, the measurements specified in the drawing are required for us to look up your core, please tell us the measurements when you email.

A. Core height between header plates (Core only)

B. Core Width from fin to fin (not including side pieces)

C. Core thickness

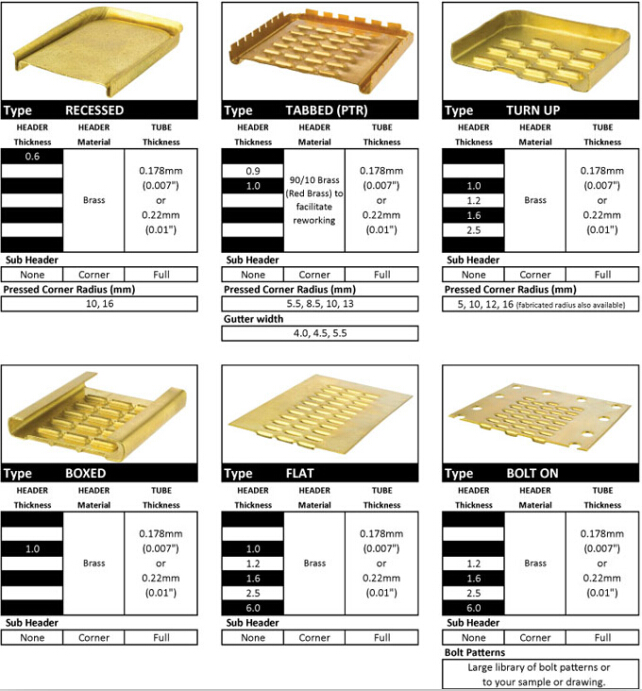

D. Header Width

     Solder on tanks measure center/center of the groove

E. Header Length

     Number of bolt holes in each header

     Solder on tanks measure center/center of the groove

F. Header Overhang

     If both measurements are the same, the headers are centered.
